Checking the carrier plate

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

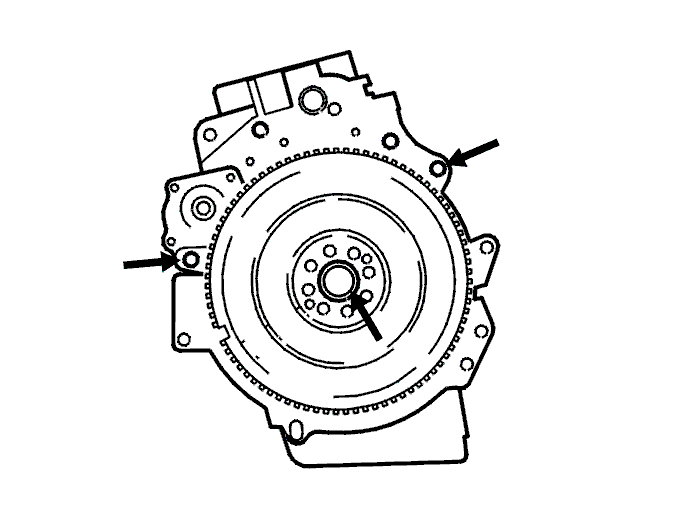

Fig 1: Checking Carrier Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check:

that the carrier plate is not damaged or cracked.
that the transmission/engine mating surfaces are clean.
that the guide sleeves are intact and in place
that the bushing for the torque converter in the crankshaft is free from defects.
