Removing the cable
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

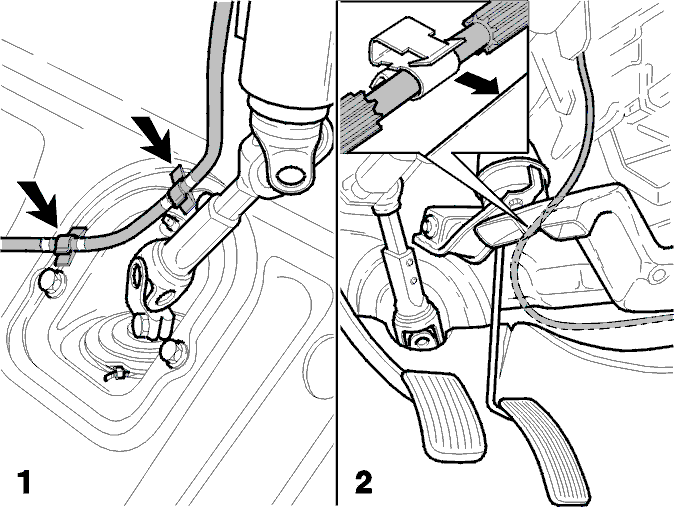

Right-hand drive cars (1). Remove:
- the clips from the steering column transfer plate
- the cable carefully from the car.
Left-hand drive cars (2). Remove:
- the clip from the air duct
- the cable carefully from the car.
