Removing the cable from the steering wheel lock cylinder
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

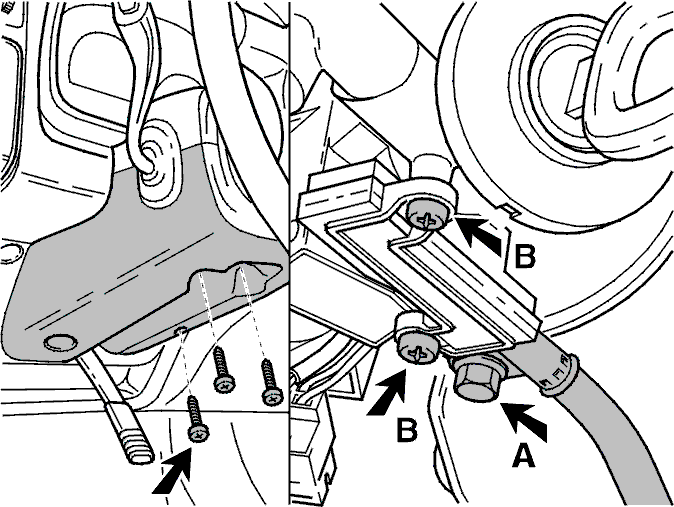

Remove:
- the panel under the dashboard on the driver's side
- the lower steering column cover
- the cable sleeve mounting screw (A)
- the two screws (B) for the cover
- the cable.
NOTE:
The retaining clip for the cable may fall out. Do not lose it.
