Installing the cable on the steering wheel lock cylinder
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

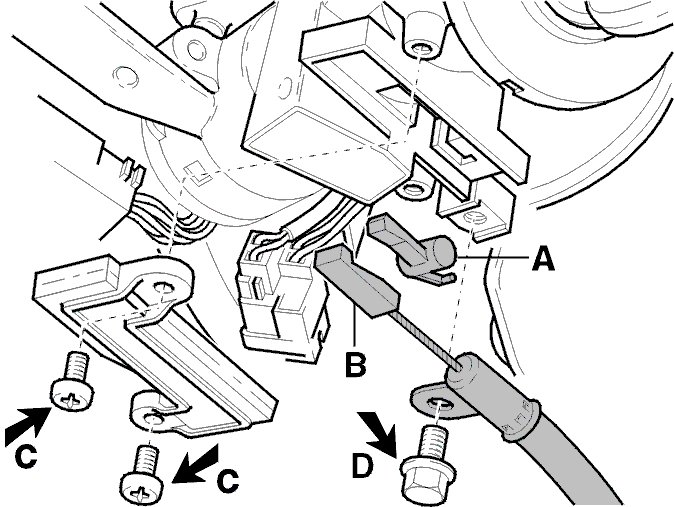

Install:
- the retaining clip (A)
- the cable (B) in the retaining clip (A)
- the cover (C) (two screws).
NOTE:
Turn the ignition key to position 1 if necessary.
Install and secure the cable sleeve with the screw (D).
Checking and adjusting the cable in the center console, see Adjusting the keylock cable
