Installing the cable on the gear lever

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

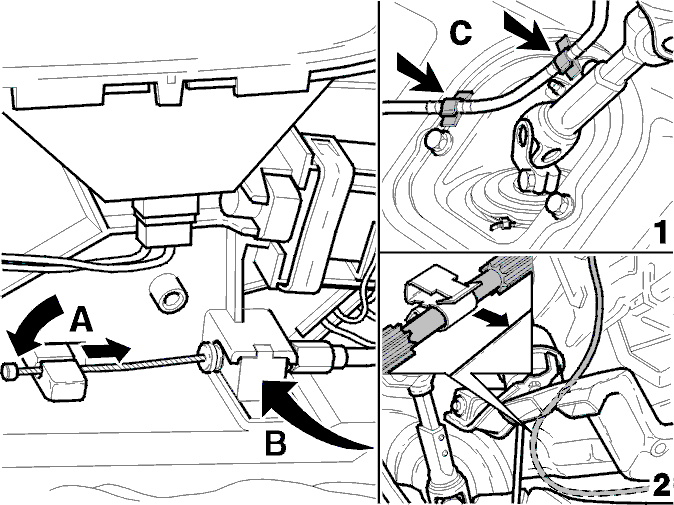

Fig 1: Installing Cable On Gear Lever

Courtesy of VOLVO CARS OF NORTH AMERICA.

Select P position
Route the cable over the steering shaft to the gear lever
Install the cable in the lever (A)
Slide the adjuster unit together with the cable and the cable sleeve into the bracket (B).

Right-hand drive cars (1). Install

the cable and clips on the steering shaft transfer plate (C).

Left-hand drive cars (2). Install:

the cable and clip on the air duct.
