Installing the cable harness

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Oil Temperature Sensor And Holder Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the O-rings for the cable harness grommet and the oil temperature sensor with automatic transmission fluid.

Install the cable harness. Connect the connectors to the solenoids according to the notes.

Install the oil temperature sensor with the holder and the screw. Tighten to 10 Nm .

Install the cable harness on the holder. Check that the cable harness is correctly positioned.

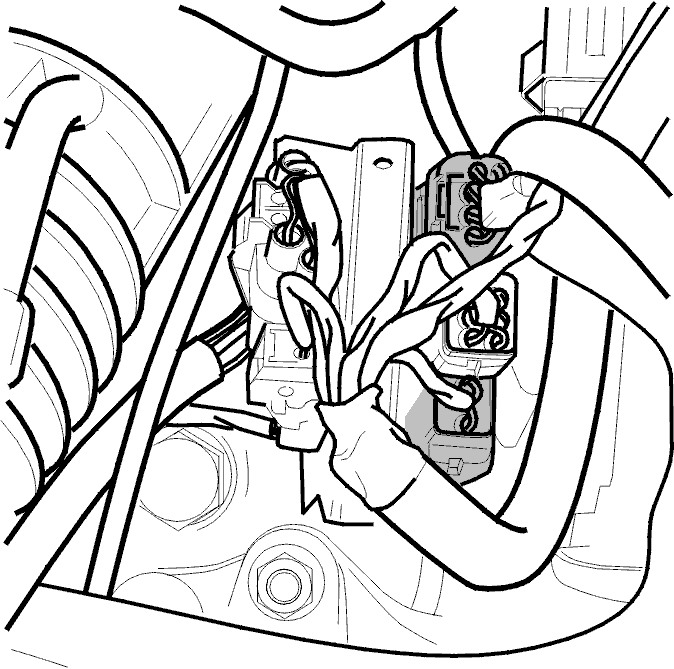

Fig 1: Removing/Installing Transmission Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install and connect the cable harness connector to the bracket.

Ensure that the cable harness is correctly positioned.

Attach the cable harness using tie straps.
