Installing components
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

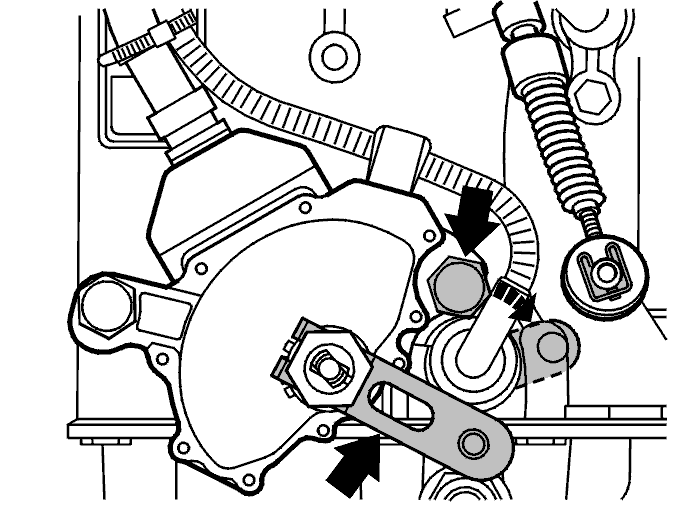

Install:
- the lever on the gear shift linkage rod.
Tighten to: 16 Nm
- the transmission cable on the lever using a retaining clip. Apply a small amount of grease (P/N 1161241- 3) to the lever shaft journal.
If the transmission cable has been removed it must be adjusted. See Adjusting the mechanical cable for the transmission .
