Seat belts, rear, replacing (5-door): Notes

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

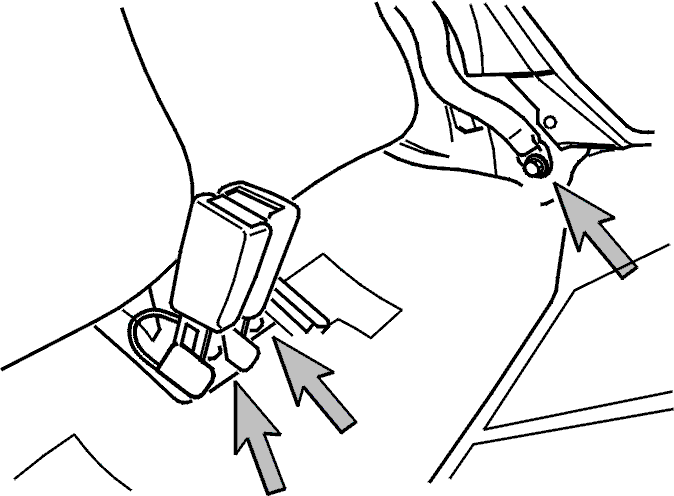

Fig 1: Rear Seat Belt
GLL127690Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Remove backrest seat belts according to Replacing rear seat backrest upholstery/seat belt, 5-door model (single backrest)

Remove the nuts on the floor.

Install:

In reverse order

Tightening torques:

Nuts to bodywork:48 Nm  (35.4 ft. lbs.)
