Removing seat belt buckle
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

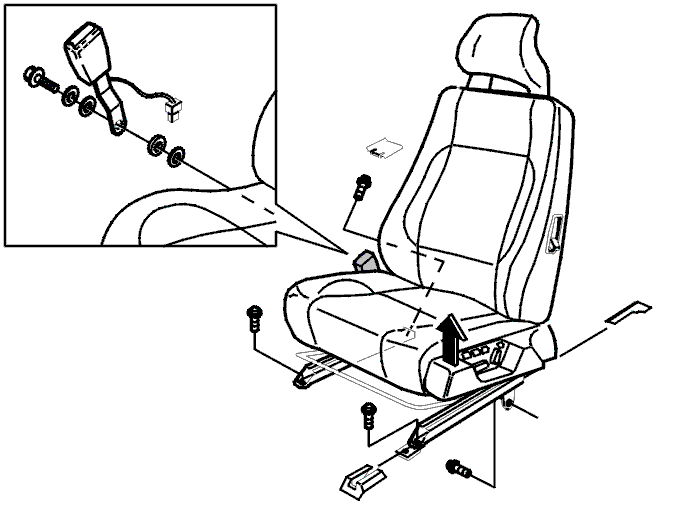

Fig 1: Identifying Panels, Mounting Bolts, Seat Belt Buckle Screw And Connector To Heater Pad And Control Module
Remove:
- 4 panels from seat rails.
- 4 mounting bolts in the seat rails.
- connector to heater pad and control module (under the seat).
- 1 seat belt buckle screw by angling the seat.
