Removing seat belt (inertia) reel with seat belt tensioner from B-post

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Removing spacer with upper seat belt guide

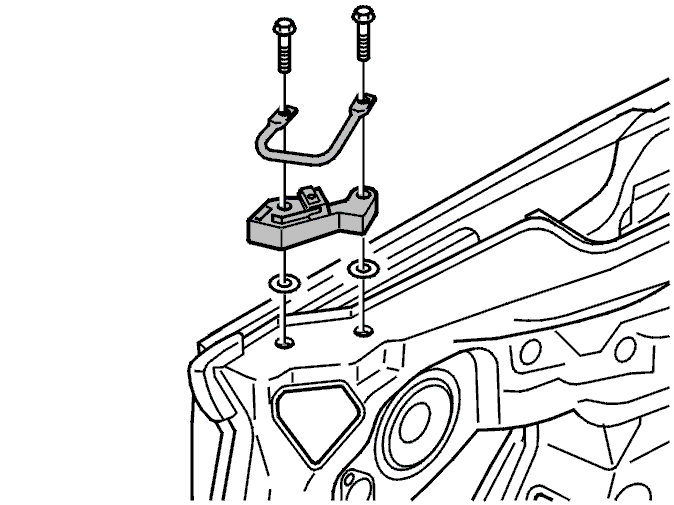

Fig 1: Identifying Screws For Spacer With Upper Seat Belt Guide

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

rear side panel. Rear side panel .
2 screws for spacer with upper seat belt guide.

Installation

When installing tighten the screws to 48 Nm .

Removing seat belt (inertia) reel with seat belt tensioner

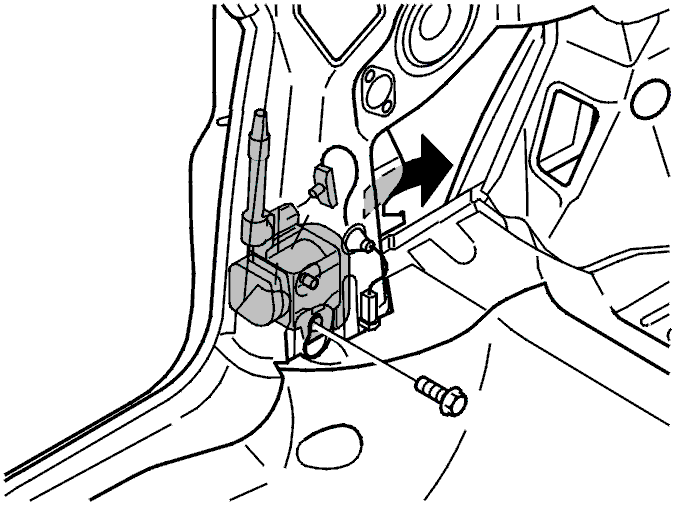

Fig 2: Identifying Screw At Lower Edge Of Seat Belt Reel And Seat Belt Reel With Seat Belt Tensioner

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING:

The battery must not be connected when the ignition cable connector is being removed or installed.

WARNING:

Under no circumstances use an ohmmeter or other live measuring instrument to take readings on a disconnected non-deployed seat belt tensioner. This could deploy it.

Remove:

the SRS ignition cable connector from the seat belt tensioner.

Remove the screw at lower edge of the seat belt reel with seat belt tensioner.

Remove the seat belt reel with seat belt tensioner through the hole in the side of the B-post.

WARNING:

After a collision, both upper seat belt guides, the seat belt (inertia) reels with seat belt tensioners and the seat belt buckle must always be replaced. This applies even if no-one was sitting in the passenger seat.

Installation

When installing tighten the screw to 48 Nm .

WARNING:

The seat belt tensioner must never be taken apart, repaired or moved to another vehicle. For handling replaced seat belt tensioner, see Handling replaced SRS airbags / seat belt tensioners .
