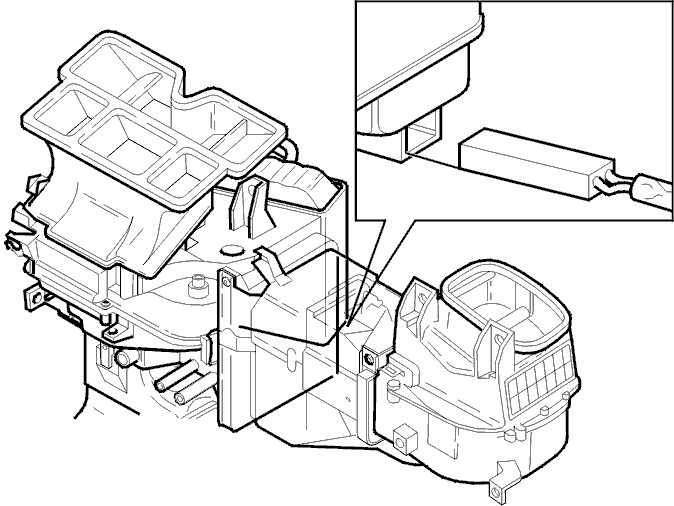

Refrigerant temperature sensor, replacing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove the lower cover and the tunnel side panel on the passenger side. See Removing the dashboard .
Pull a section of the floor carpeting to one side.
Disconnect the wiring and the connectors.
Carefully remove the sensor from the sleeve.
Install in reverse order.
Secure the sensor using the mounting components (ensure that the sensor has good contact with the heat exchanger).
