Replacing the Cigarette Lighter - Electrical Socket: Removal

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Ignition off.

Remove the rear section of the center console according to Rear center console (-2001) and Rear center console (2002-).

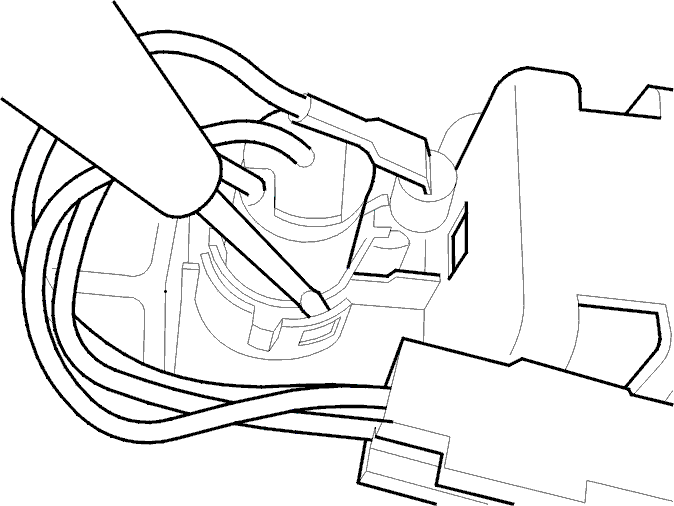

Fig 1: Replacing Cigarette Lighter - Electrical Socket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cover for the cigarette lighter.

Carefully pry out the catch using a small screwdriver. Pull off the electrical socket for the cigarette lighter assembly.
