Replacing gas struts
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Open the tailgate. Support the tailgate.
Lift up the lock unit for the gas strut on the both sides. Pull the gas strut off the ball joint.
Lubricate the ball joint. Press the gas struts into place. Check that the gas strut is secure.
NOTE:
When replacing gas struts, drain the gas from the old strut.

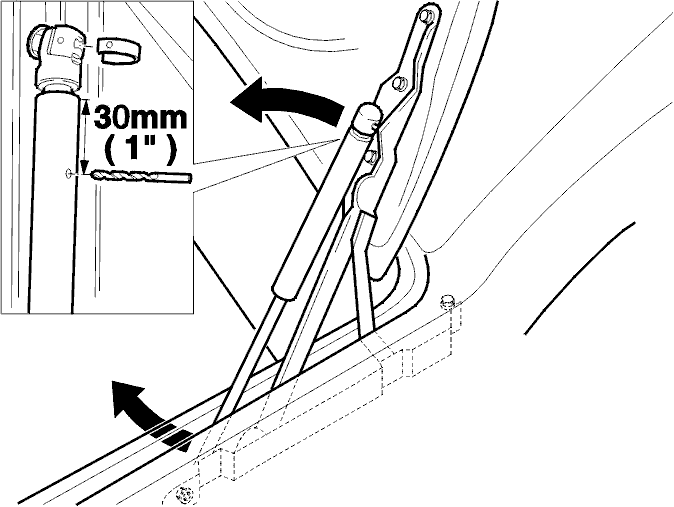

Drill a 4 mm hole as shown.
WARNING:
Use protective goggles when drilling.
