Removing the tailgate assembly
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
If necessary replace the components according to Tailgate components .
Disconnect the connector for the tail lamp.
Pull the cable harness up through the rear fender.

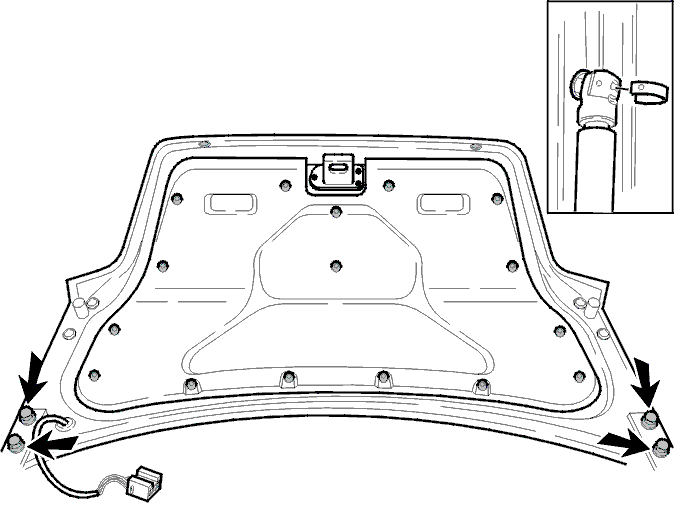

Lift up the lock for the gas strut. Pull the gas strut from the ball joint.
Remove the screws which secure the hinge to the trunk lid. Remove the trunk lid.
