Removing the run-off profile

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

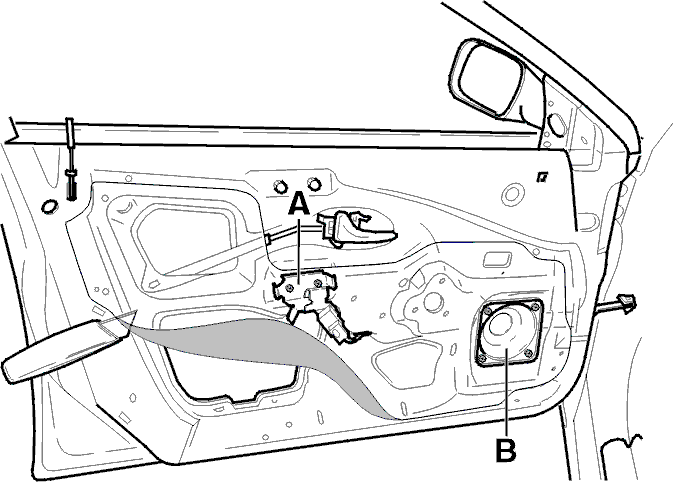

Fig 1: Removing Run-Off Profile
GLL116715Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two screws and bracket (A).

Carefully pull the run-off profile away from the door whilst cutting the sealing joint between the door and the profile.

NOTE: Do not damage the door or run-off profile.
