Removing/installing ultrasonic cable harness

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

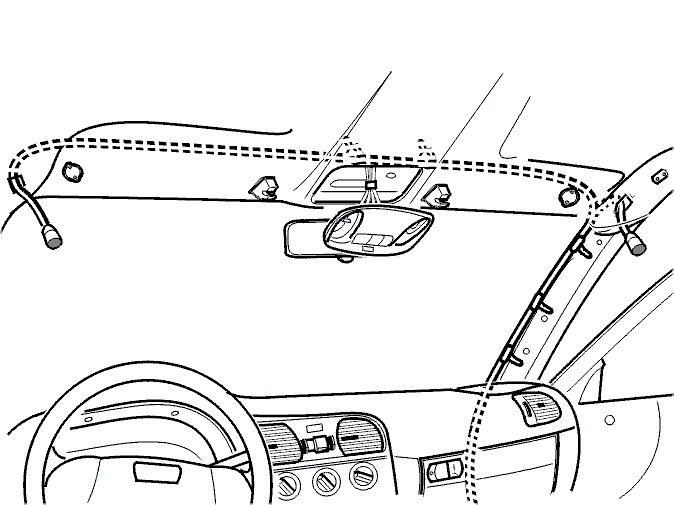

Fig 1: Locating Ultrasonic Cable Harness

GLL115452

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Remove the panel under the dashboard on passenger side.
Remove interior lightning completely.
Undo sensor connector from ultrasonic module.
Remove sensor cable from A post and take it out.

Install:

Position sensor cable and install connector in the ultrasonic module.
Install interior lightning.
Install panel under the dashboard.
