Removing/installing glass breakage cable harness

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

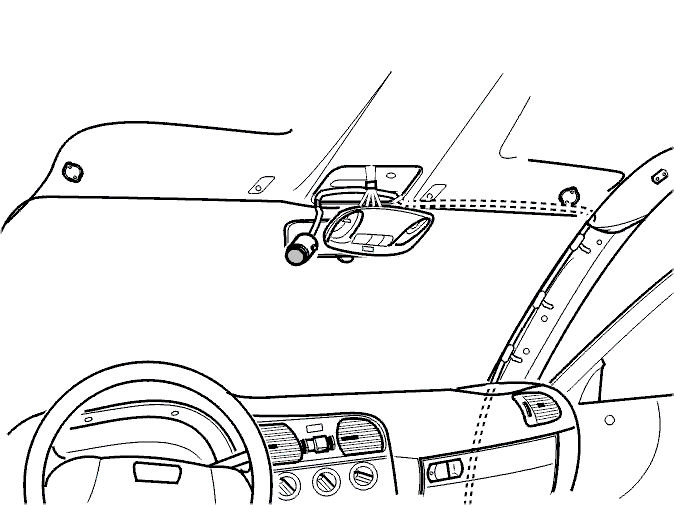

Fig 1: Glass Breakage Sensor Cable Harness

GLL115441

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Remove the A post panel.
Remove the panel under the dashboard on passenger side.
Remove complete interior lighting.
Undo sensor connector from glass breakage module.
Remove sensor cable harness from A post and take it out.

Install:

Position sensor cable and install connector in the glass breakage module.
Attach connector and install interior lighting.
Install the A post panel.
Install panel under the dashboard.
