Removing/fitting the tailgate lock cylinder
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the tailgate cover panel, see Removing/fitting the tailgate insulation .
- Remove the rear light unit, see Changing the rear light unit .
- Remove the central locking control rod.
- Remove the pull rod from the lock.

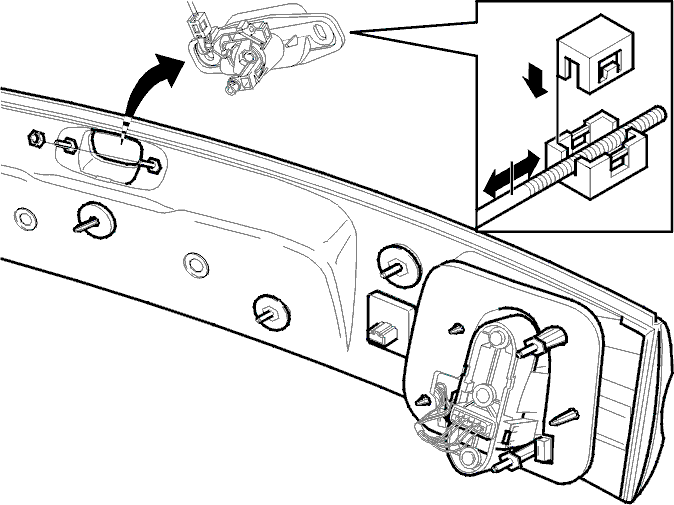

- Press out the lock cylinder and holder, and remove by twisting.
- Refit in reverse order.
- Check the rubber seal.
NOTE:
When adjusting the pull rod, press the lock cylinder as far as it will go to the right.
