Changing the rear light unit
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

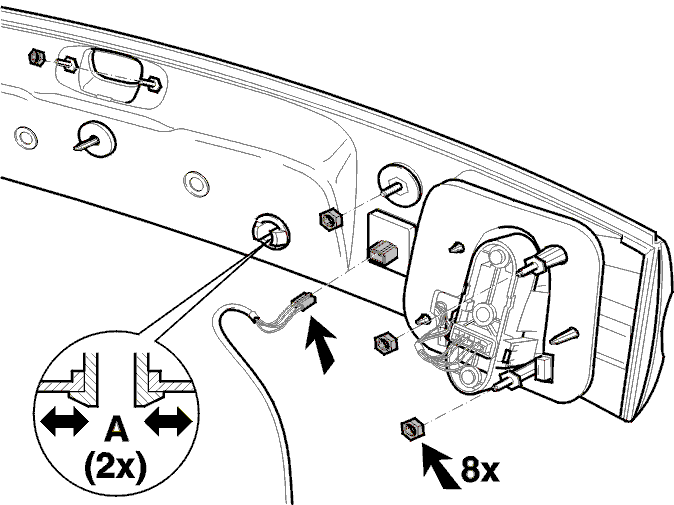

- Remove the cover panel, see Removing/fitting the tailgate insulation .
- Unplug the white connector.
- Remove the 8 nuts.
- Press the clip (A) together.
- Carefully press the unit out of the tailgate.
