Changing the tailgate lock mechanism

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

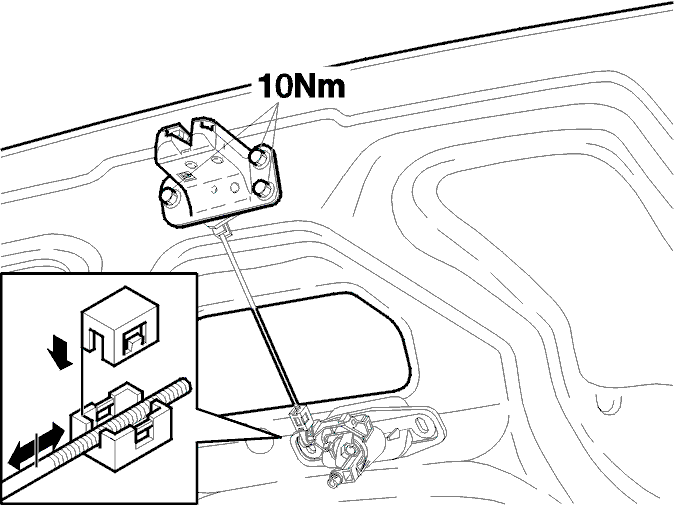

Fig 1: Changing Tailgate Lock Mechanism With Torque Specifications

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel from the tailgate, see Removing/fitting the tailgate insulation .
Remove the rear light unit, see Changing the rear light unit .
Uncouple the lock's link rod by the lock.
Undo the three lock retaining screws and remove the lock.
Remove the connectors.
Refit in reverse order.
Move the link rod over and adjust it. Pull the rod back and press on the retaining clip.
Tighten the bolts. Tightening torque 10 Nm.
