Changing the gas spring

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

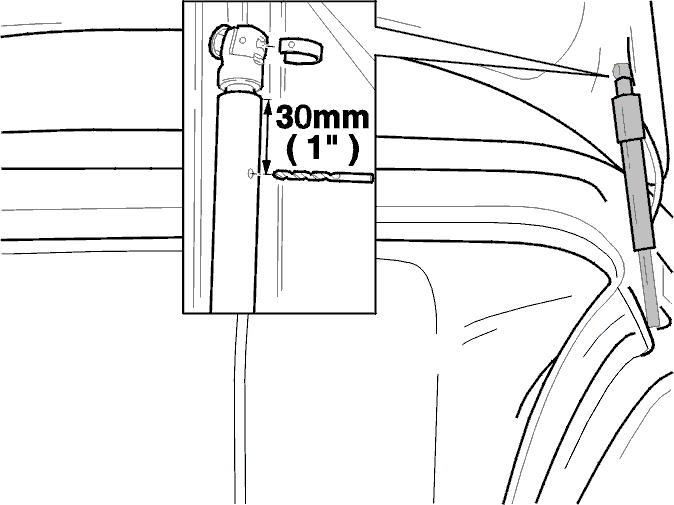

Fig 1: Drilling Hole In Gas Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the tailgate and support it.
Raise the catch slightly and pull the gas spring from the ball joint (2x).
Refit in reverse order.
Grease the ball joints.

NOTE: When changing the gas spring, the gas should be released from the old spring.

Drill a 4 mm hole as shown.

WARNING: Use protective goggles when drilling.

Model year 1996-1999, see Model Year 1996-1999 .

Model year 2000-, see Model Year 2000 .
