Removing boot lid lock mechanism
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the cover panel, see Removing/installing boot lid cover .

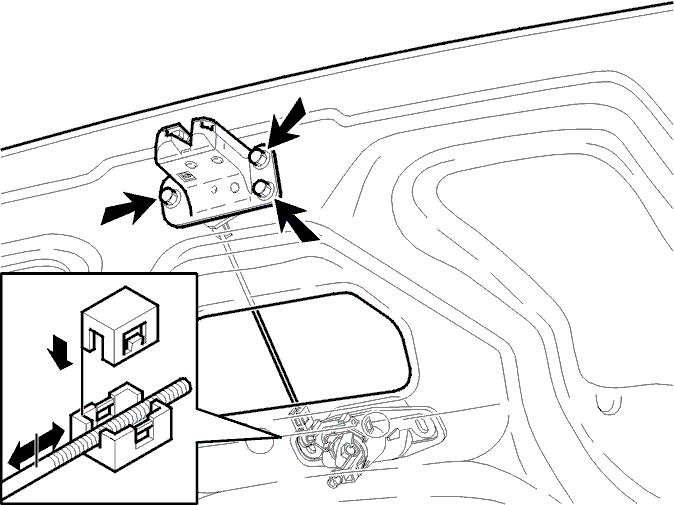

- Disconnect the lock's connecting rod at the locking clamp.
- Undo the three bolts securing the lock and remove the lock.
- Remove the connectors.
