Removing boot lid lock cylinder
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

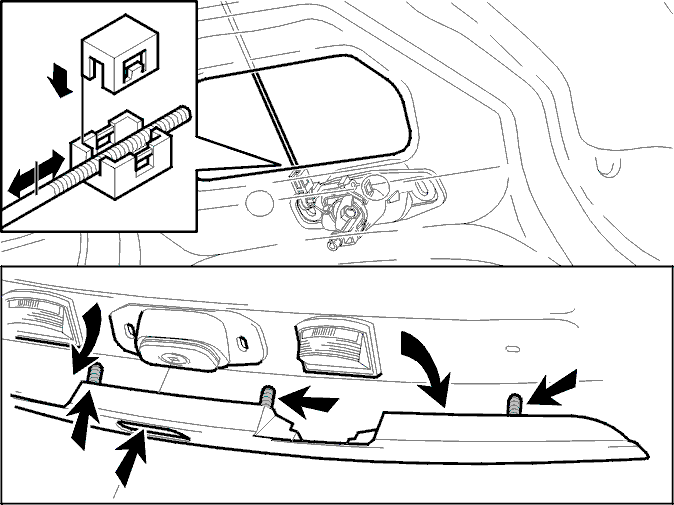

- Remove the cover panel, see Removing/installing boot lid cover .
- Disconnect the central locking operating rod.
- Remove the pull-rod from the lock.
- Remove the nuts (4x).
- Push out lock cylinder with bracket and remove connector.
- Install in reverse order
NOTE:
When adjusting the pull-rod, push the lock cylinder as far to the right as possible and pull the motor rod out as far as possible.
