Adjusting boot lid catch lock
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

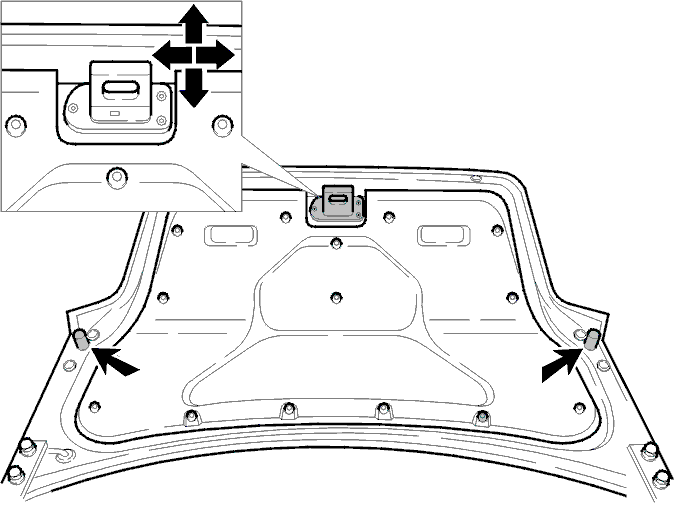

- Loosen the bolts on the body, position the lock and tighten the bolts, tightening torque: 10 Nm.
The height of the boot lid can be set with the hinge.
- Also adjust the impact absorbers so that the boot lid can be closed without resistance and the impact absorbers about properly.
