Removing/installing guide rails
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:

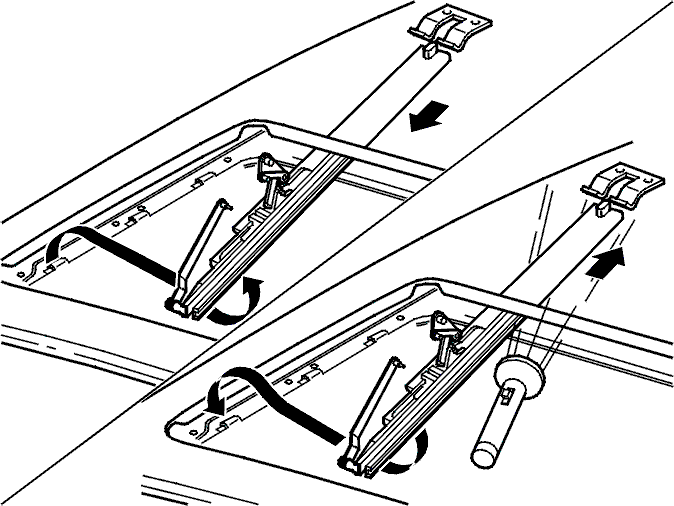

The guide rails can be removed without removing the mechanism.
- Pull the rail forwards out of the rear support.
- Check the rubber seal.
- Position the rail straight in the support at the back and press it in firmly.
