Installing sun shade
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

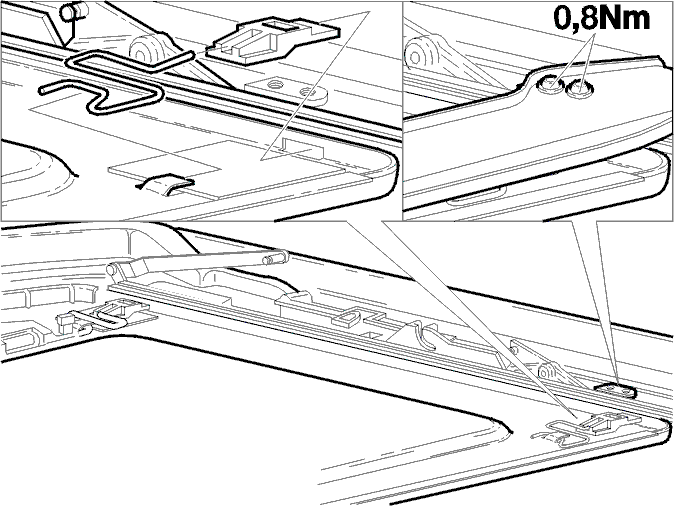

- Fit the guides and the spring on one side (position as shown).
- Carefully fit the sun shade and ensure that the guides slot into the rail.
- Fit the springs and guides on the other side and ensure that these slot into the rail.
- Check working.
- Install the gutter (0.8 Nm).
- Install the glass panel and adjust it, see Adjusting the glass panel in the roof opening .
