Removing cassette
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:
Work with two people.
- Support the cassette.

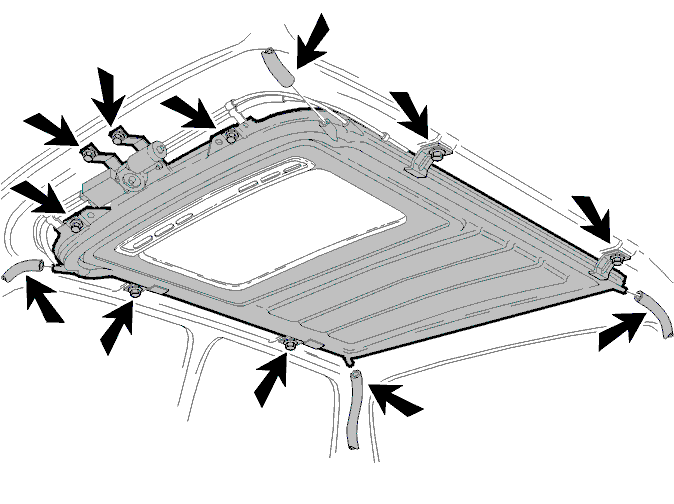

- Remove the securing bolts (8X).
- Remove the cassette through the tailgate or front door.
NOTE:
Lift the front cable harness over the motor support.
