Installing loose components

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

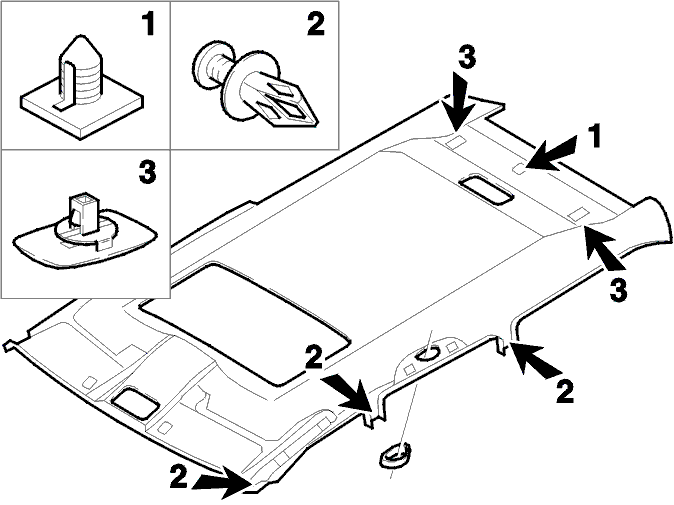

Fig 1: Headliner Clips And Plugs

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

The sun visors
The front plugs; if there is an illuminated rear view mirror, route the cable through and connect
The two plugs to the D-post (5 door models)
The two plugs to the C-post
The center plug at the rear
The headlining behind the sealing strips for the tailgate and the door opening.
