Removing/installing motor: Preparation

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

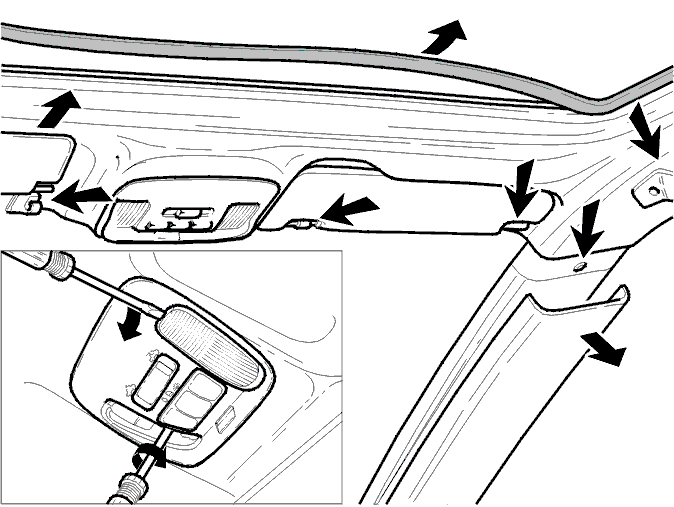

Fig 1: Removing Panel For The A-Pillar, Sun Visor And Interior Lighting Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

General:

Before replacing the control unit and/or the slide and tilt roof motor, the following components must be removed or disconnected.

Remove:

A pillar panel, see Replacing the inner panel on the A-post .
Sun shade on the right hand side.
Both sun shade supports.
Grab handle or panel on right.

Disconnect:

Courtesy lighting panel assembly.
Disconnect headlining plug on the right hand side and lift the lining over the door strip.
Remove half the edge of the slide and tilt roof opening.
