Installing window guide rail

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

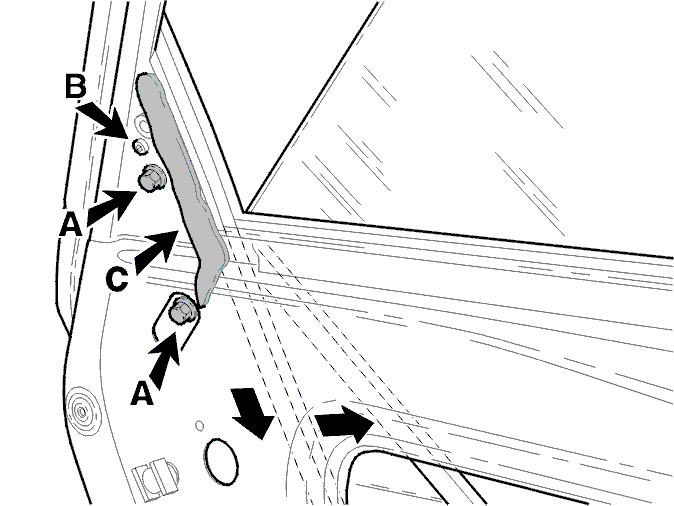

Fig 1: Guide Rail And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate weather strip and guide rail.
Bring the guide in from the underside.
Position for the holes and tighten bolts to 10 Nm.
Place the weather strip into the guide.
Place the outer cover and fit the screw.
Place the door insulation into it's place.
Place the foam piece back at the guide.
