Installing guide plate

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

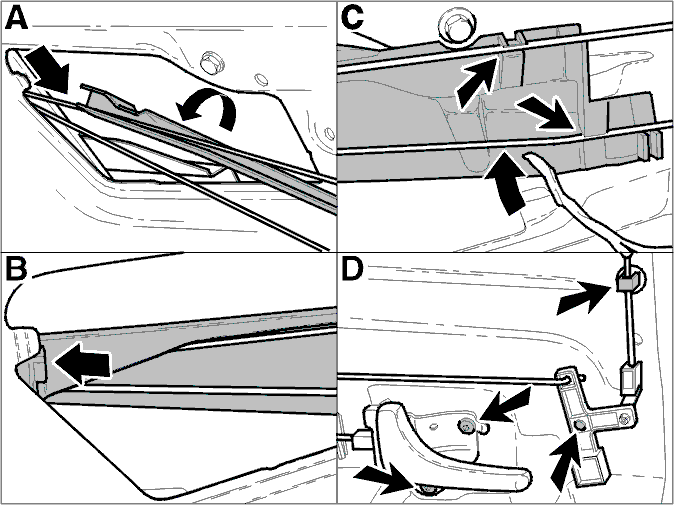

Fig 1: Installing Inner Lock Mechanism

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn cover upside down.
Bring locking device rod at the rear side in the guide panel.
Turn plate upside again.
Bring locking device rod at the front side in the guide panel.
Move panel to the rear over the lip at the door panel.
Place the cover plate at the front in the door.
Position opener in guide panel and fit the screws (2x).
Place the locking device over the scranking pin and hook into the clip.
Place the outer handgrip rod (press rod in clip).
Check the function.
Tighten the screws of the opener and check.
