Striker plate, adjusting
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

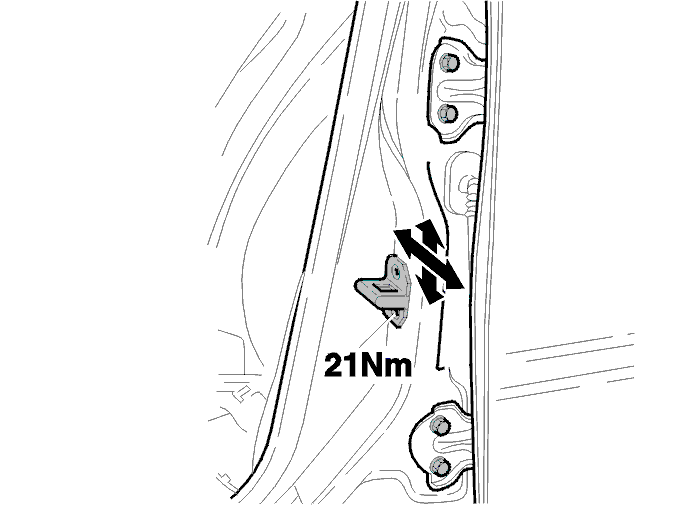

- Slacken off the screws until the striker plate can be moved.
Ensure that the door is not resting against the striker plate. Ensure that the striker plate is not forcing the door upwards.
- Hold the door handle out. Check that the door can be opened and closed without sticking
- Check that the door closes properly. Check that the door is fully in line with the car body.
Tighten the screws. Tighten to 21 Nm.
