Removing the control unit
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

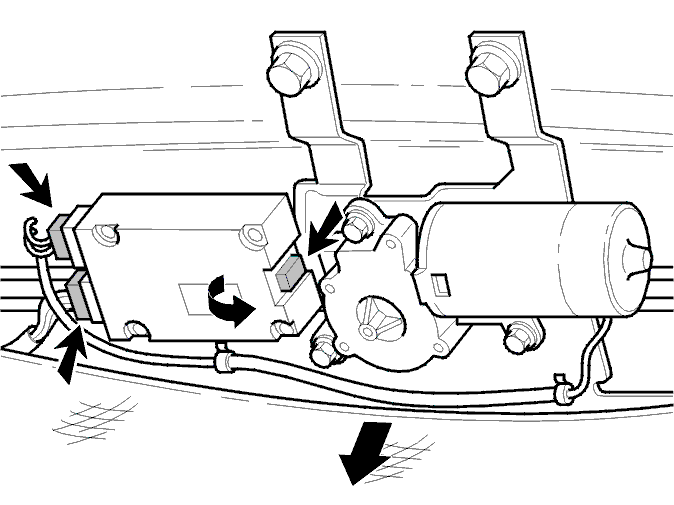

- Carefully push the headlining down and position a spacer.
- Press in the catches and slide the control unit out from the support to the motor.
- Disconnect the connectors.
- Remove the control unit.
The sun roof must be closed before installing the control unit and wiring.
NOTE:
Close the sun roof from the open position, not from the tilted position.
