Checking operating switch

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

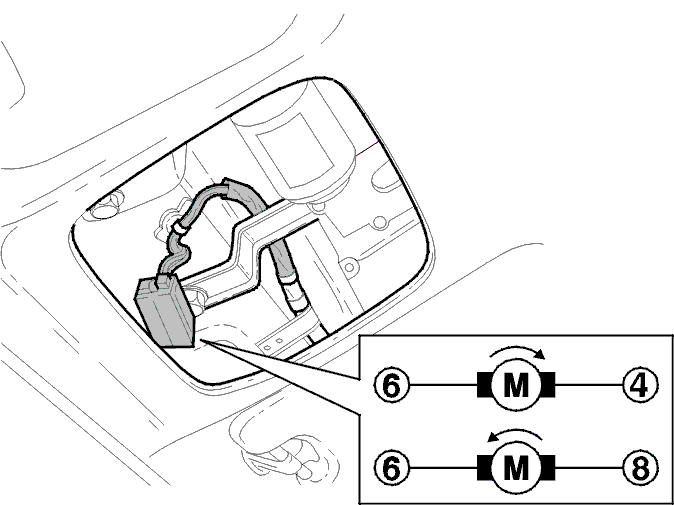

Fig 1: Checking Operating Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the courtesy light, see Removing courtesy light .
Switch on the ignition.
Connect a cable between connection 6 and 4 (open to the tilt position) or between connection 6 and 8 (close from the tilt position).

Slide and tilt roof works; switch is faulty.

Install the courtesy light, see Installing courtesy light .
