Removing the lift mechanism

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

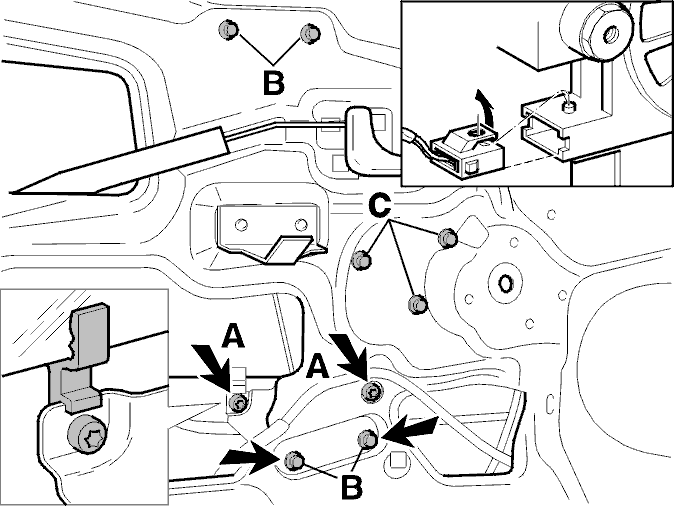

Fig 1: Removing Lift Mechanism

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the door panel according to Removing the panel from the front door
the panel lining carefully to access the screws
the two screws
the side impact protection support and side impact protection block.

Lower the window. Remove the two screws (A).

Raise the window. Secure using tape.

Remove:

the four screws (B)
the three screws (C) for the motor
the connector
the lift mechanism.
