Removing trunk/tailgate switch
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Remove boot lid cover (S40), see Removing/installing boot lid cover .
- Remove tailgate cover (V40), see Removing/fitting the tailgate insulation .
- Remove the connecting rod from the lock (push locating pin in and separate parts from one another).

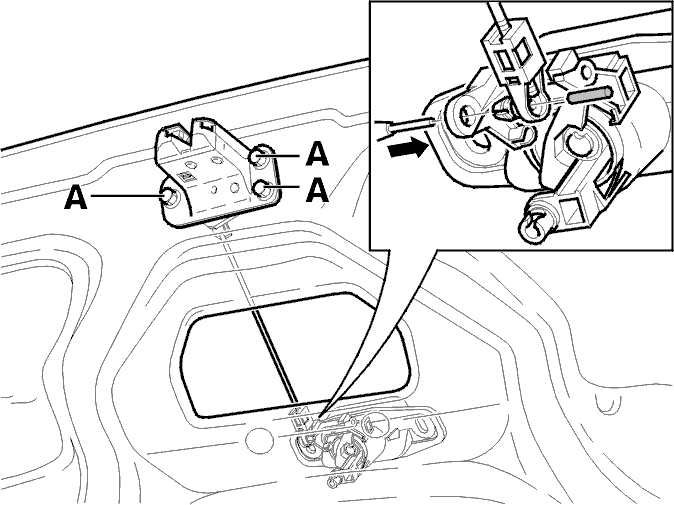

- Undo the (3x) lock mounting bolts (A ) and remove the lock.
- Remove connectors.
- Replace complete lock, transfer connecting rod.
