Removing switch

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

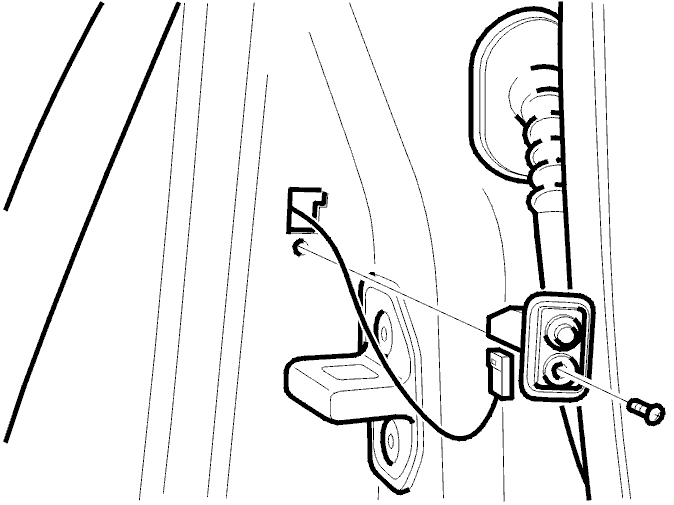

Fig 1: Removing Mounting Screw To Switch From B- Or C-Post

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the mounting screw to the switch from the B- or C-post.

Fig 2: Removing Tilt Switch With Turning Movement

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove tilt switch with a turning movement.
Undo connectors.
