WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

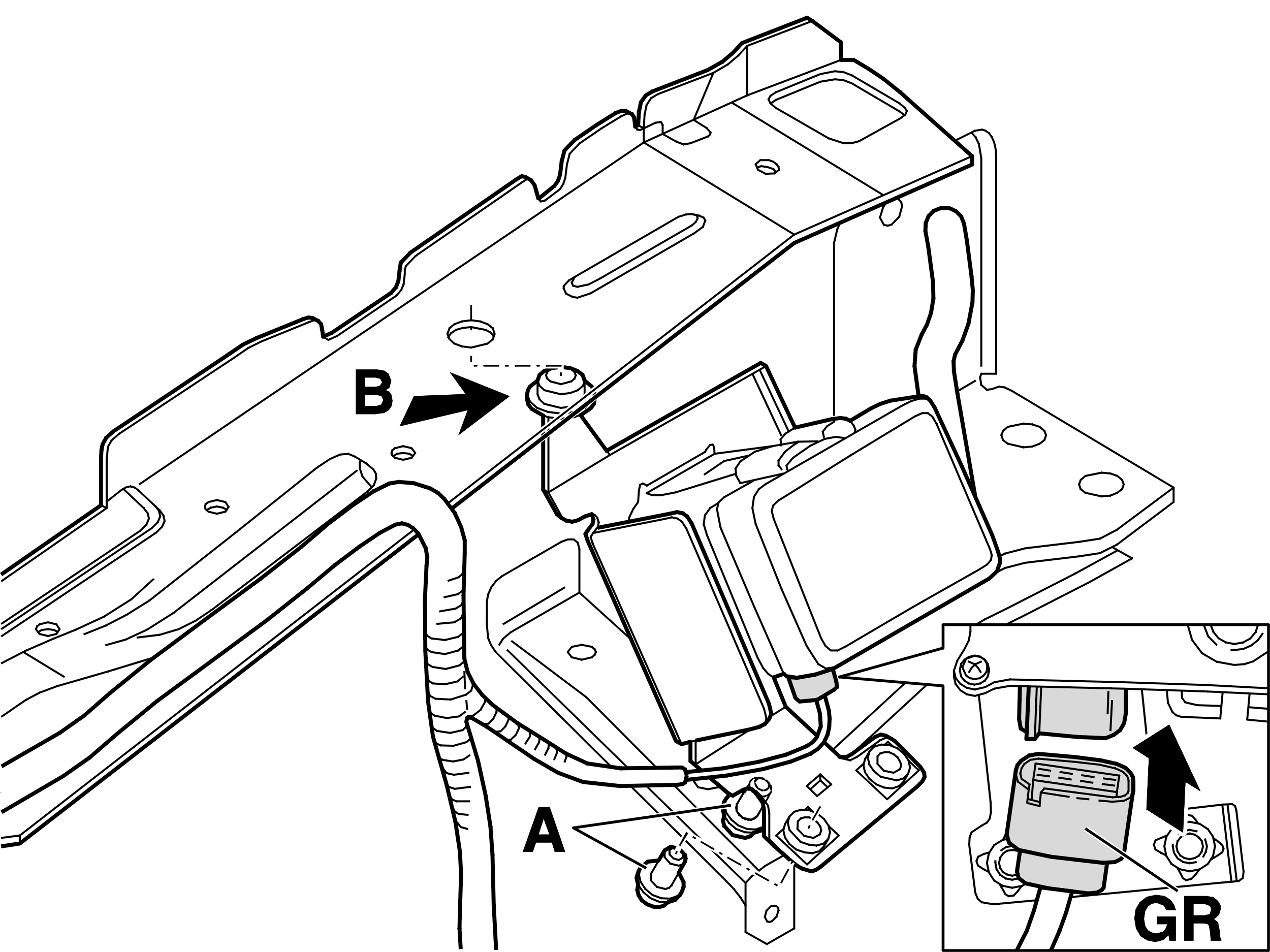

Fig 1: Installing Siren
Courtesy of VOLVO CARS OF NORTH AMERICA.
Install:
the gray connector (GR)
the siren in position (B) with the rubber plug
the new screw (A). Tighten to 10 Nm
.
NOTE:
Use lubricating grease (P/N 1161427) in the connector.
