Removing the LED (VGLA)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

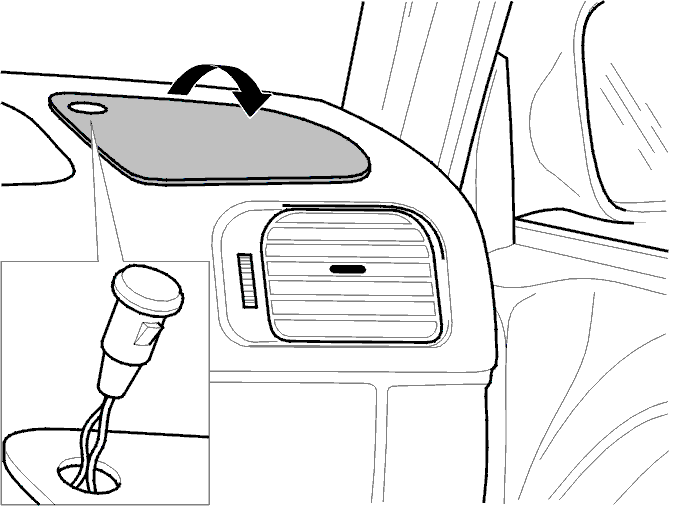

Fig 1: Loudspeaker Grille On Passenger Side
GLL117116Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the loudspeaker grille on the passenger side by lifting it at the front and twisting outwards.

Lift up the LED. Remove the connector.
