Replacing hood switch with switch

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

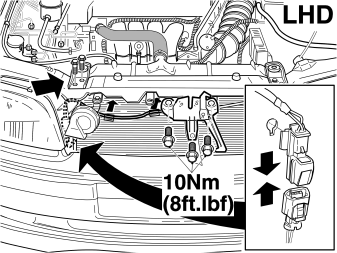

Fig 1: Hood Switch, Screws And Switch With Torque Specifications -- LHD

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Remove the connector inside the front section.
Remove radiator bracket on the connector side.
Remove bolts (3x).
Unhook cable from hood lock.
Remove hood lock.
If air-condition is installed, remove radiator bracket on the other side.
Remove condenser bolts (2x).

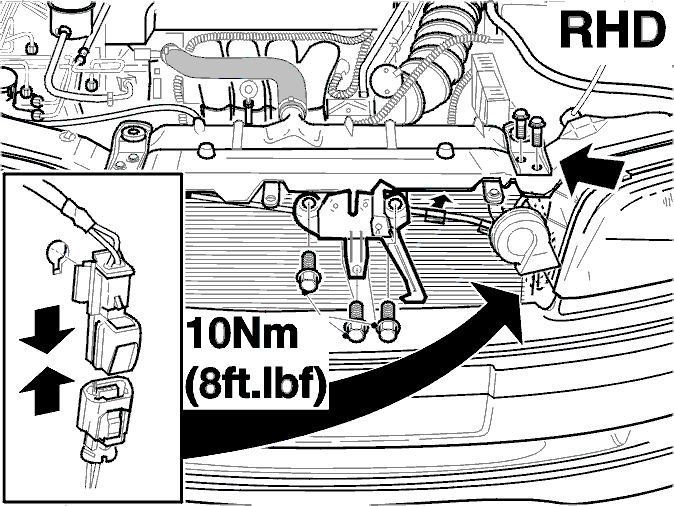

Fig 2: Hood Switch, Screws And Switch With Torque Specifications -- RHD

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Hook cable in hood lock.
Position hood lock, use new bolts (10 Nm).
Connect connector and install it in the front section.
Install condenser bolts and radiator brackets.
Check the function of the hood lock.
