Removing The Lever On The Gear Shift Linkage Rod

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2007 Volvo V70, 2006 Volvo V70, 2005 Volvo V70, 2004 Volvo V70, and 2003 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.

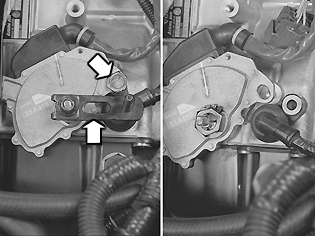

Fig 1: Identifying Lever On Gear Shift Linkage Rod, Gear Selector Sensor, Cable Harness & Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the lever on the gear shift linkage rod
the screw for the gear selector sensor and cable harness.

Twist out the tab on the cable harness holder.
