Replacing The Turbocharger (TC): Preparation

Fig 1: Identifying Engine Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Disconnect the battery negative lead according to Battery, disconnecting .
• Remove the engine cover.

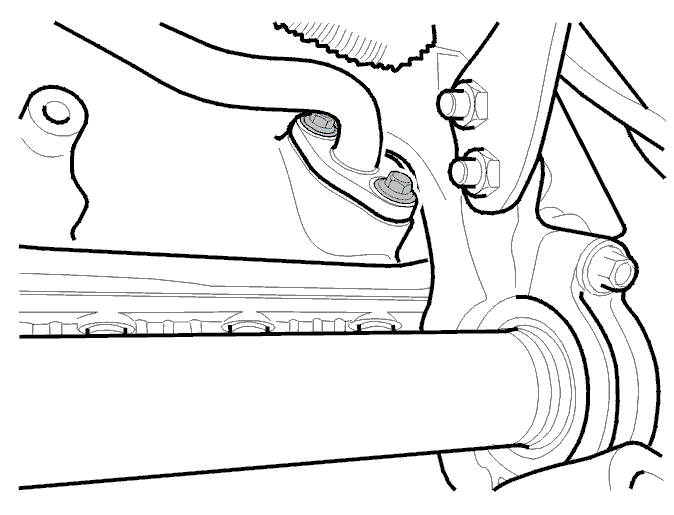

Fig 2: Identifying Engine Stabilizer Brace

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the screw for the torque rod mounting in the torque control arm on the engine.
• the screws at the suspension turrets.
• the torque rod.

Remove the three-way catalytic converter (TWC) according to Replacing the three-way catalytic converter (TWC) .

Applies only to right-hand drive:

Remove the collision protection system over the oil filter.

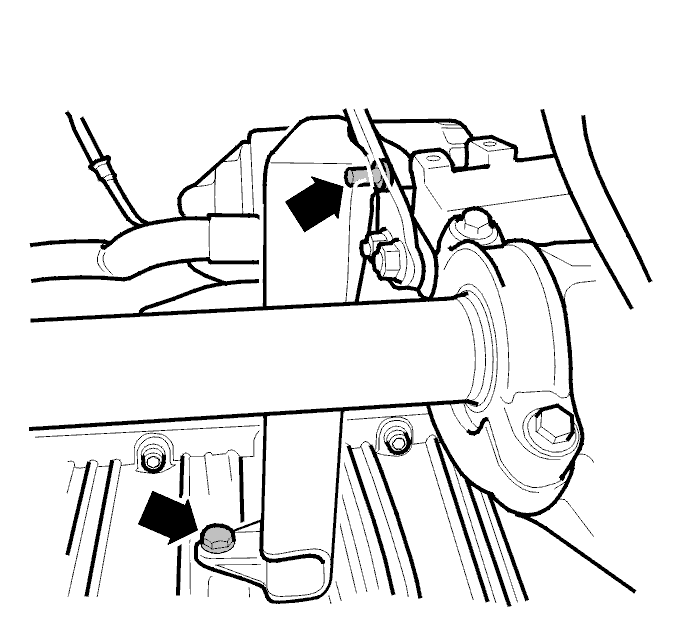

Fig 3: Identifying Collision Protection System

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the oil drain.

Fig 4: Locating Lower Oil Pipe Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the lower oil pipe from the engine.

Lower the car.

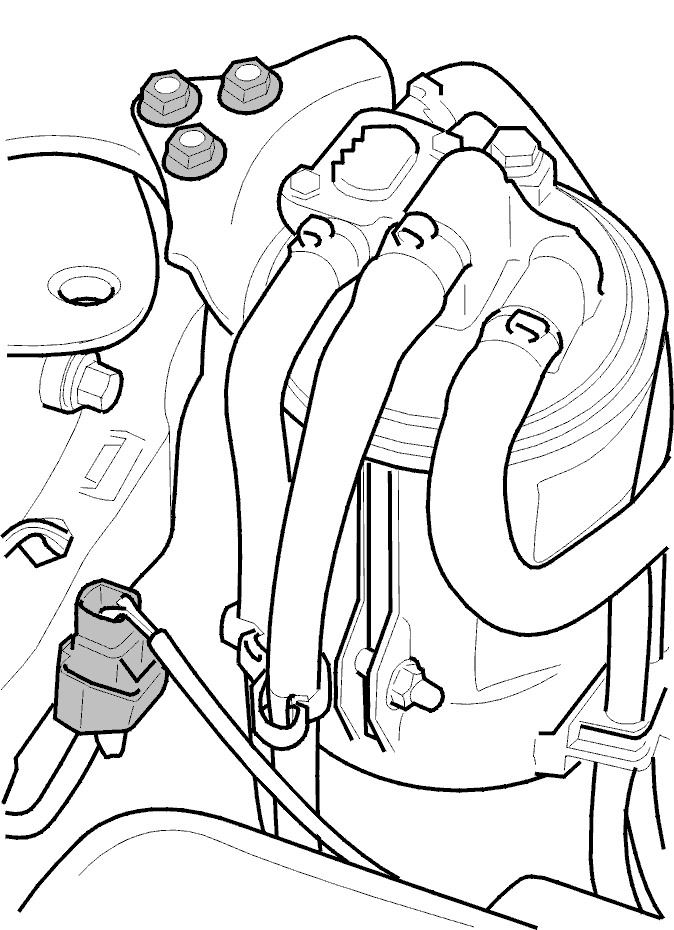

Fig 5: Identifying Fuel Filter Nuts And ABS Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies only to left-hand drive:

Remove the ABS connector.

Remove the fuel filter from the right-hand suspension turret and place it to one side.
