Pressure Bleeding

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2004 Volvo S80, 2004 Volvo S60, 2003 Volvo S80, 2003 Volvo S60, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before bleeding brakes, ensure ignition is off. Clean around brake fluid reservoir filler cap before removing. Top-off brake fluid reservoir as necessary.
  1. Take out special brake fluid collection bottle.
  2. Connect pressure bleeder to brake fluid reservoir. See Fig 1. Follow manufacturers instructions for connecting and using bleeding unit.
  3. Pressurize brake system. Check brake fluid reservoir connector.
  4. Raise and support vehicle. Remove wheels.
  5. Remove protective cap from left front bleed nipple.
  6. Connect hose from collection bottle.
  7. Open left front bleed nipple. Close it when there are no more air bubbles in fluid coming out of hose.
  8. Tighten bleed nipple.
  9. Remove hose from bleed nipple. Reinstall protective cap.
  10. Repeat procedure for right rear, left rear and right front brakes. See BRAKE BLEEDING SEQUENCE  table.
  11. Check for leakage from bleed nipples.
  12. Close valve on pressure line. Open a nipple and close it again.
  13. Check for air in brake system and for brake fluid leakage.

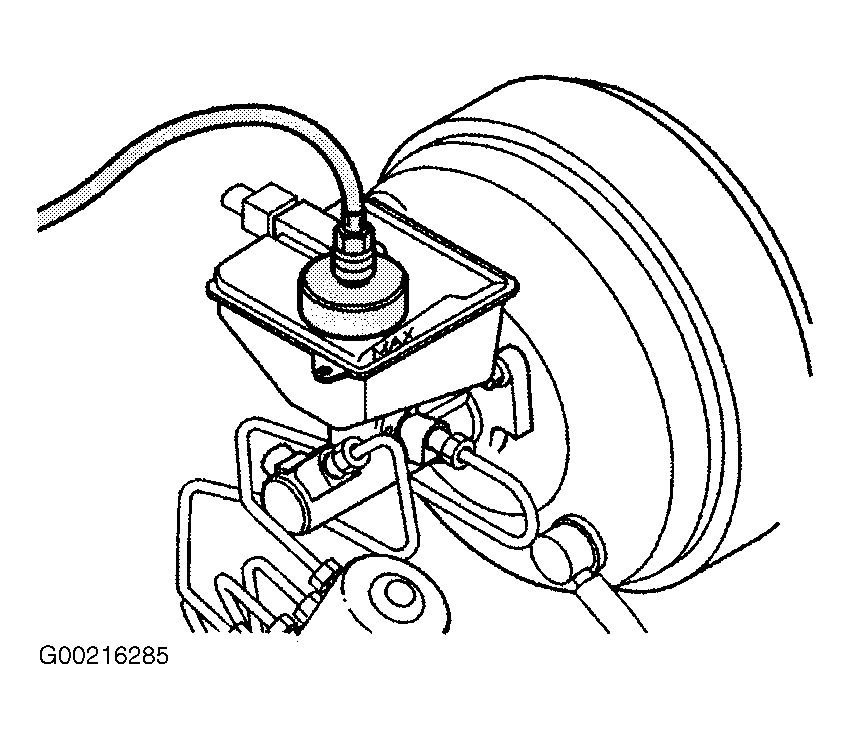

Fig 1: Connecting Pressure Bleeder To Master Cylinder Reservoir
G00216285Courtesy of VOLVO CARS OF NORTH AMERICA.
