Removing The Bushing

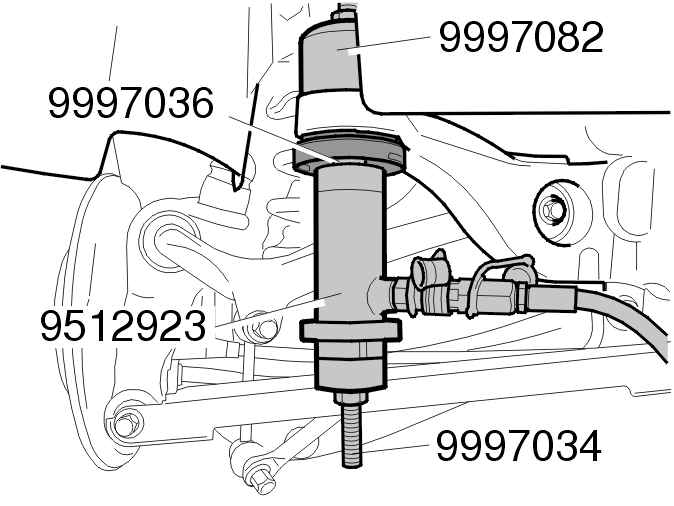

Fig 1: Removing Steel Sleeve

Courtesy of VOLVO CARS OF NORTH AMERICA.

Mark up the bushing position in relation to the subframe
Remove the steel sleeve. Use tool 9512923 with 9997054 , 9995082 , 9997036 and 9997034 .
NOTE:
The conical side of 9997036 must be pointing towards the steel sleeve.
Tighten until it clicks and the steel sleeve releases
Remove the tool.

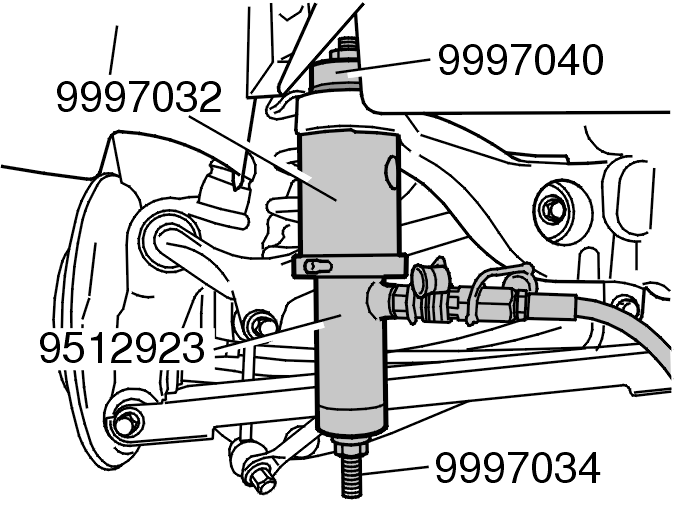

Fig 2: Installing Hydraulic Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the hydraulic cylinder. Use tool 9512923 with 9997054 , 9997032 , 9997040 and 9997034
Pull the bushing out.

NOTE:

Center 9997040 carefully to prevent damaging the sub-frame.
