Removing The Wheel Spindle

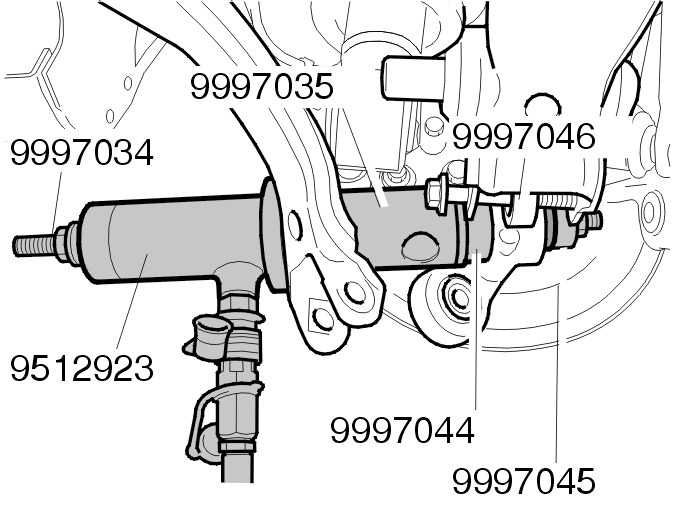

Fig 1: Installing Screw For Control Arm Mounting Using 999 7046 As A Spacer To Keep Spindle Out

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw for the lower outer control arm mounting
Remove the screw for the drive shaft mounting
Press in the drive shaft and twist out the spindle
Install the screw for the control arm mounting using 9997046 as a spacer to keep the spindle out.
