Installing The Bushing
Courtesy of VOLVO CARS OF NORTH AMERICA.

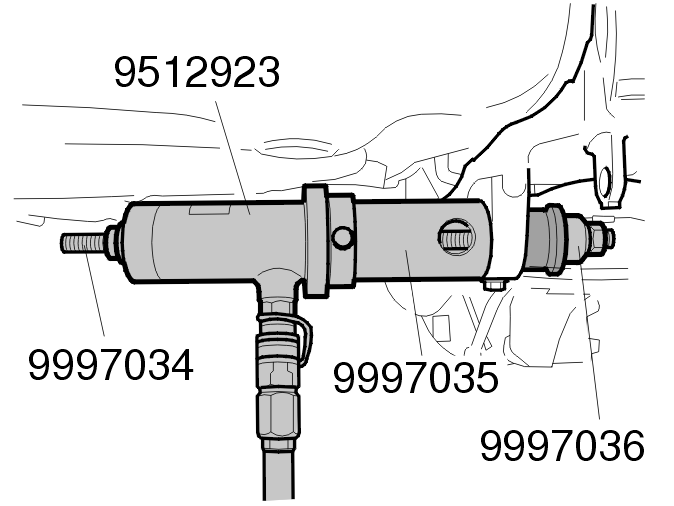

- Install the hydraulic cylinder
- Use tool 9512923
with 9997054
, 9997035
, 9997036
and 9997034
- Pull the bushing until only approximately 2 mm of the bushing steel sleeve is visible
- Remove the hydraulic cylinder.
