Installing The Upper Rear Control Arm Bushing

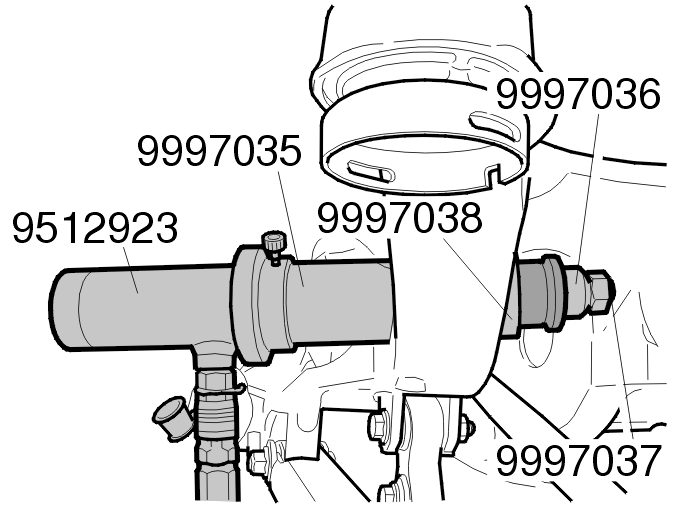

Fig 1: Installing Upper Rear Control Arm Bushing

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Use tool: 9512923 with 9997054 , 9997035 , 9997038 and 9997036
• Install the hydraulic cylinder. Use threaded rod 9997039 .

  HINT: Lubricate the end of the bushing using petroleum jelly.

• Pull the bushing.

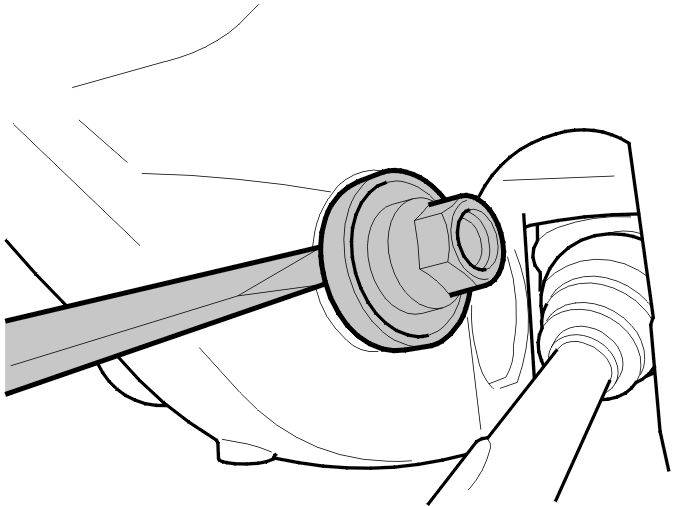

Fig 2: Identifying Guide Sleeve

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: When the bushing is completely in the guide sleeve, release slightly and break off the sleeve. It is now possible to see if the bushing has been pulled in too far.
