Installing The Torque Arm And Anti-Roll Bar Link

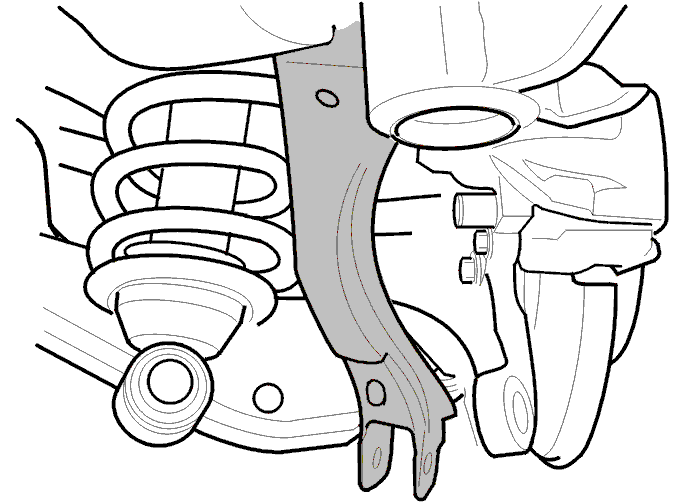

Fig 1: Lateral Link Against Wheel Spindle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the screws for the support arms. Do not tighten the screws yet.

NOTE:

Do not install the screws in the wheel spindle.

Install the link for the anti-roll bar on the upper control arm on both sides. Use M10 screws. Use new nuts.
