Installing The Anti-Roll Bar

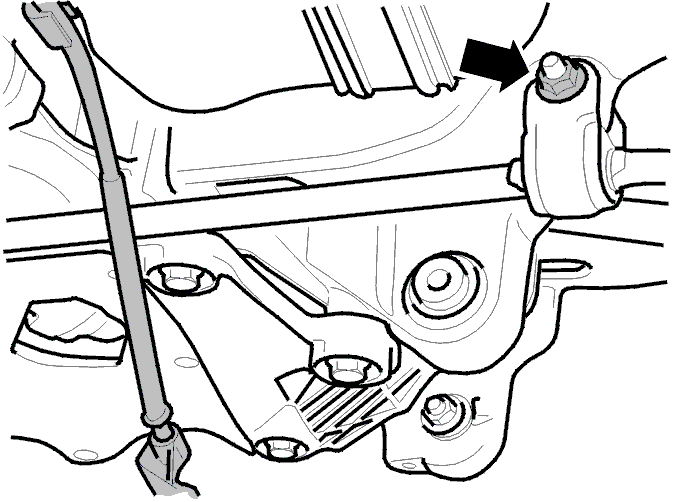

Fig 1: Anti-Roll Bar From Mountings On Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the anti-roll bar in the rear axle member. Use an M12 screw. Use new locknuts.

NOTE:

Ensure that the cable for the parking brake passes below the ends of the anti-roll bar. Press the cables into place in the clamps on the heat deflector plate.
