Press the transmission cable into place on the bracket

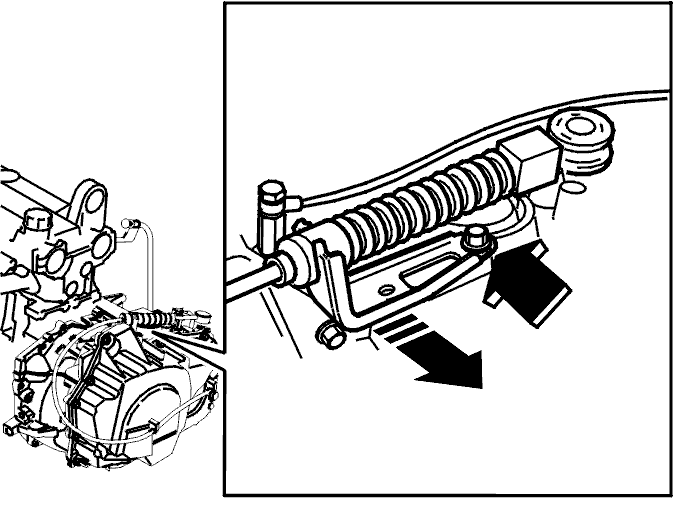

Fig 1: Identifying Pressing Transmission Cable Into Place On Bracket
GLL104341Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the cable bracket out towards the fender liner.

Press the transmission cable into place on the bracket.

Tighten the bracket rear screw slightly.
